*Screws Not Included - Screws can be purchased from our "Hardware" section
*Mounted means that the Circuit Board is Mounted (screwed) to the Heatsink and the Transistor Holes are Drilled*
this unit utilizes QTY 2 120mm Fans
Nylon Grommet: 5017 or 2654(Fits Originally drilled hole)
Inculded:

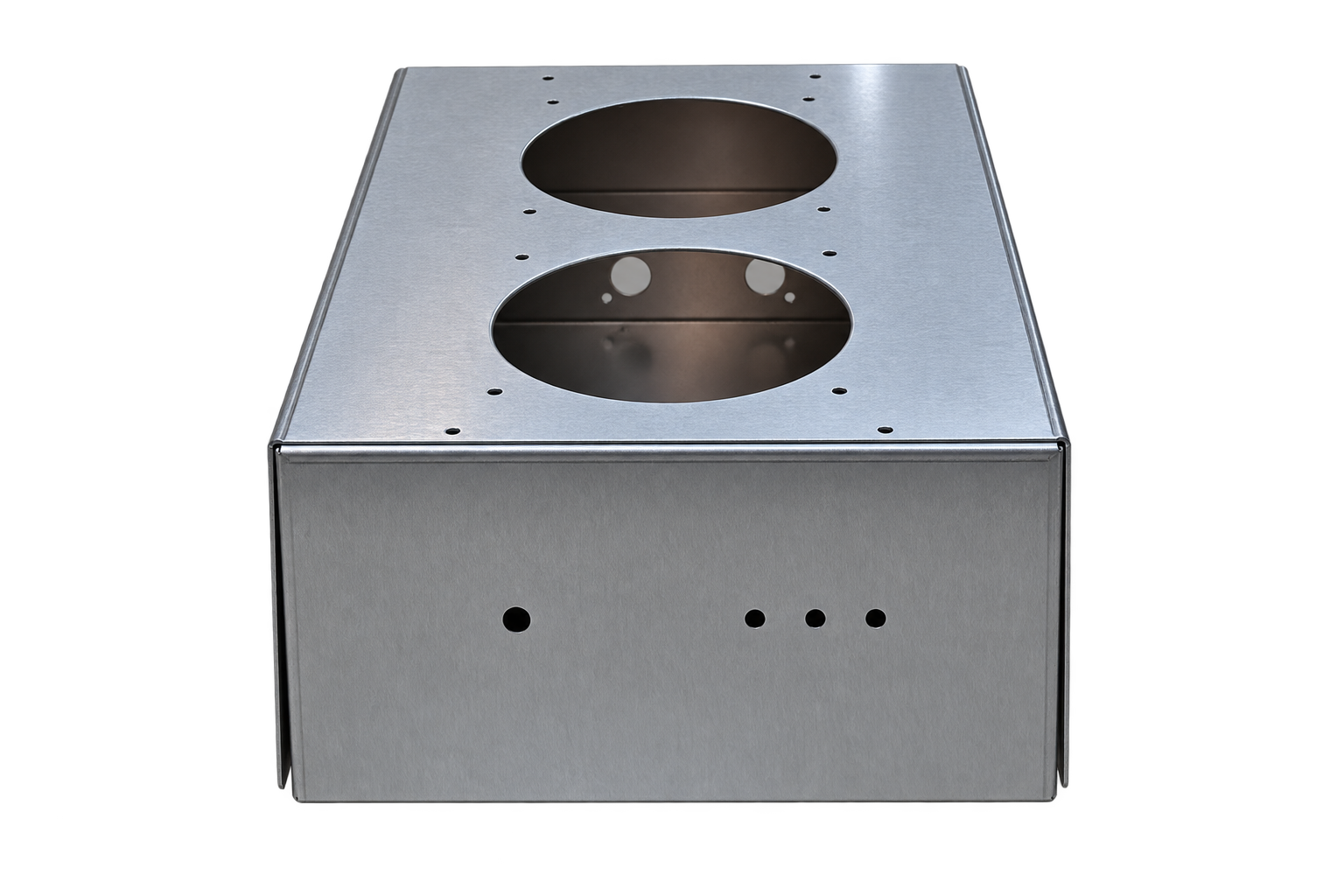

Cabinet:C-DC-2×8(20 3/8 x 14 5/8 x 5 3/8)
Circuit Board: P-CB-8 medium( 11.375 x 9.125)
Heatsink:P-HS-M(9 1/4" x 5 3/8" x 1 3/8")
Picture if for reference purpose only
Cabinet has a Clear Coat finish in the reference pictures
