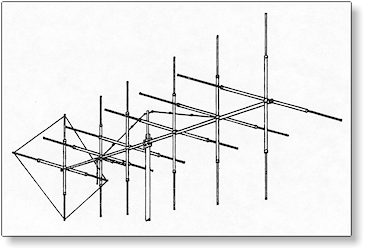

LASER 400 12 Element Base Station Antenna

The 12 Element Laser is designed to achieve
the maximum gain and front-to-back ratio
using a Quad Reflector and Yagi parasitic
elements. There are 6 elements vertical and 6
elements horizontal spaced on a 31 foot boom
for optimal performance. The Laser 400
features switchable polarity and the Maco
2kW power handling capability. Second only
in performance to the larger Laser 500.

This is an oversize antenna. There is an extra handling charge on shipments.

Prices subject to change due to metal prices

Features:

• 12 Elements

• 31' Boom Length

• 50x Power Multiplication

• 17 dB Gain

• 90mph Wind Survival

• 17' Turn Radius

• 10.5 sq. ft. Surface Radius

• Vertical/Horizontal Beams
